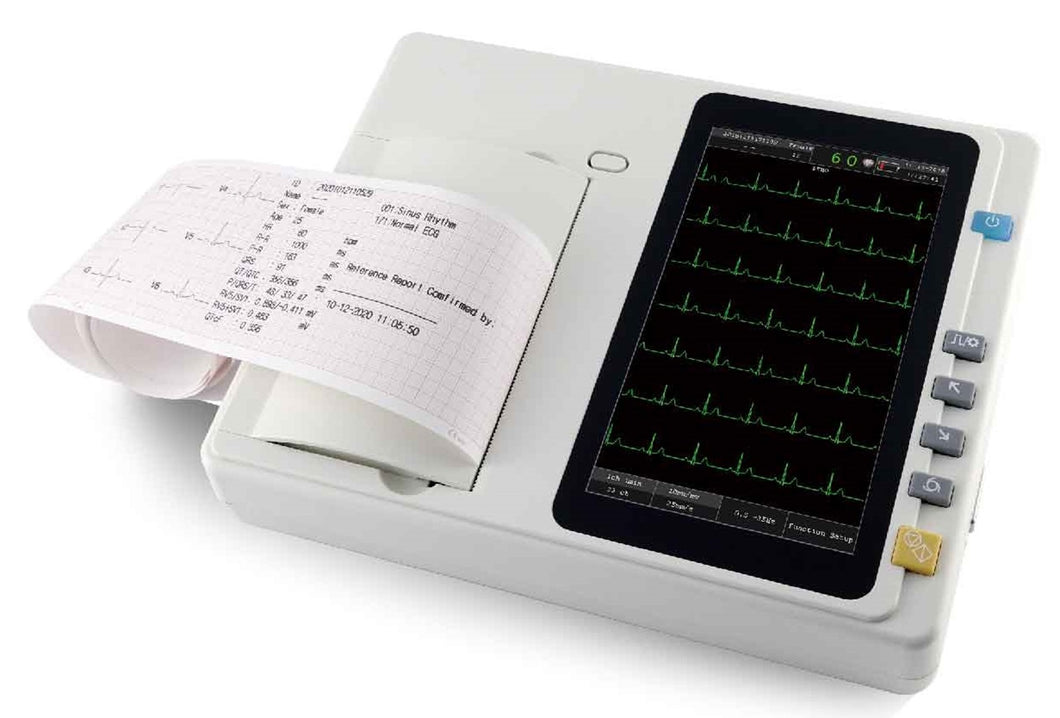

7-inch-high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Support USB flash disk and micro-SD card to extend memory
Built-in rechargeable Li-ion battery
Measurement Range ±5mVpp
Input circuit Floating; Protection circuit against Defibrillator effect
Input Impedance ≥50MΩ
Input circuit current ＜0.05µA
CMRR >100dB
Patient leak current ＜10µA (220V-240V)
Anti-baseline Drift Automatic
Dimension 54*33*75cm, total gross weight 22 KG
Power Supply AC: 100~240V, 50/60Hz, 30VA~100VA DC: 14.8V/2200mAh, built-in lithium battery
